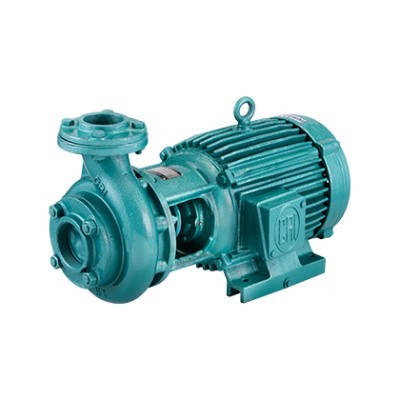

Centrifugal pumps are one of the most innovative solutions for agricultural irrigation. They are best suited for continuous operation wherein a non-stop flow of water is required. Centrifugal pumps are widely used since they are highly efficient, easy to operate and maintain and have a wide range of capacities.
Centrifugal pumps from C.R.I are powered by a totally enclosed fan cooled AC induction two poles and a four-pole motor. This enables continuous operation. The efficient construction of the motor frame and the usage of quality materials results in high performance. The high-quality mechanical seal lowers the temperature rise. The robust construction supports the life cycle of the motor.
Basics of Centrifugal Pump:
An impeller is the prime component of a centrifugal pump. Using centrifugal force and rotational energy, the impeller moves water entering the inlet or suction through the outlet. The water coming out of a centrifugal pump is of high force.
| SPECIFICATIONS | JUMBO Series |
|---|---|
| Power Range | 2.2 kW – 15 kW (3 HP – 20 HP) |
| Voltage Range | Three-Phase, 350/ 380 / 415V, 50Hz, AC Supply |
| Maximum Total Head | 94 Metre |
| Maximum Flow Rate | 33 lps (118.8 m3/hr) |
Material of Construction
| Part Name | Material |
|---|---|
| Pump Casing | Cast Iron |
| Impeller | Cast Iron / Lead Bronze |
| Motor frame | Cast Iron |
| Bracket | Cast Iron |
| Shaft | SS 410/Mild Steel |
